Sign Lighting Accessories

IRON CORE BALLAST

CODE Type Current draw Wattage Watts loss
B468W EC4-6-8 165ma 4, 6, 8 4_5
B9W EC9 165ma 9 2.5
B10W EC10 225ma 10 7
B13W EC13 215ma 13 3.9
B15W EC15 310ma 15 9
B18 20W EC18-20 370ma 18-20 10.3
B30W EC30 360ma 30 15
B36 40W EC36-40 415ma 36-40 10
B58 65W EC58-65 660ma 58-65 13
B75W EC75 640ma 75 n/a
B80/85W EC85-80 n/a 80, 85 n/a
125W EC125 940ma 125 n/a

ELECTRONIC BALLASTS

STOCK CODE Type Wattage VA Power circuit Current Draw Dimension mm
PC1/14/21/28/35 Electronic Ballast 1 x 14,21,28,35 17W 74ma 280x30x21
PC2/14/21/28/35 Electronic Ballast 2 x 14,21,28,35 33W 143ma 360x30x21
PC2/39T5PRO Electronic Ballast 2 x 39w 82.5W 354ma 360x30x21
PC2/54T5PRO Electronic Ballast 2 x 54w 114W 489ma 360x30x21
PC1/18T8PRO Electronic Ballast 1 x 18w 18.5W 80ma 234x40x28
PC1/30T8PRO Electronic Ballast 1 x 30w 30W 140ma 234x40x28
PC1/36T8PRO Electronic Ballast 1 x 36w 35.5W 150ma 234x40x28
PC1/58T8PRO Electronic Ballast 1 x  58w 53.5W 230ma 234x40x28
PC2/18T8PRO Electronic Ballast 2 x 18w 37.5W 80ma 234x40x28
PC2/30T8PRO Electronic Ballast 2 x 30w 56W 260ma 234x40x28
PC2/36T8PRO Electronic Ballast 2 x 36w 71.5W 310ma 234x40x28
PC2/58T8PRO Electronic Ballast 2 x 58w 108W 460ma 234x40x28
PCA1/30T8ECO Elec Ballast Dimmable 1 x 30w 30.1W 135ma 360x30x28
PCA2/30T8ECO Elec Ballast Dimmable 2 x 30w 58W 260ma 360x30x28
PCA1/36T8ECO Elec Ballast Dimmable 1 x 36w 36.5W 165ma 360x30x28
PCA2/36T8ECO Elec Ballast Dimmable 2 x 36w 70.4W 305ma 360x30x28
EZPLUS 1X36/2X18w Electronic instant start 1 × 36 / 2 x 18W 36W 160ma 155x42x33
EZPLUS 2X36/4X18w Electronic instant start 2 × 36 / 4 x 18W 66W 300ma 186x43x33



Multiwatt Ballasts Approved Lamp Combinations
Please check suitability before ordering
Dimensions
HUO 095232 1 x 6, 8 & 13W linear fluoros 80x40x22mm
HUO 095233 1 x 7, 9 & 11W or 1 x 10 & 13W 80x40x22mm
HUO 095235 1 x 22W T5, 24 & 26W Compact 80x40x22mm
HUO 097543 1 x 9, 10, 11 & 13W or 2 x 9, 10, 11 & 13W 103x67x30mm
HUO 097544 1 x 18W Compact or 2 x 18W Cmpct 103x67x30mm
HUO 097545 1 x 18, 22, 24, 26, 32, 40 & 42W 103x67x30mm
HUO 097545 2 x 18, 22, 24, 26W lamps 103x67x30mm

FLOURESCENT TUBES, BOTH T8 & T5

Fluorescent Tubes T5 G5/11×15

STOCK CODE Watt VA Colour Length mm Diameter mm Colour oK Luminous Flux Carton QTY
FH (T5) Fluorescent HE High Efficiency Triphosphor tubes (for use with QT_FH ECG)
FH14W/860 14 w Daylight 549 16 T5 6000 1300lm 25
FH21W/860 21W Daylight 849 16 T5 6000 2000lm 25
FH28W/860 28W Daylight 1149 16 T5 6000 2750lm 25
FH35W/860 35W Daylight 1449 16 T5 6000 3500lm 25
FQ (T5) Fluorescent  HO High output Triphosphor tubes
FQ24W/865 24W Daylight 549 16 T5 6000 1600lm 25
FQ39W/865 39W Daylight 849 16 T5 6000 2850lm 25
FQ49W/865 49W Daylight 1449 16 T5 6000 3900lm 25
FQ54W/865 54W Daylight 1149 16 T5 6000 4050lm 25
FQ80W/865 80W Daylight 1449 16 T5 6000 5700lm 25
Cool White 4200 oK, Day Light 6500 oK, Natural 5000 oK

Fluorescent Tubes T8

STOCK CODE Wattage VA Colour Length mm Diameter mm Colour oK Carton Qty
F4WDL 4 Daylight 134.5 16 6500 DL 25
F6WDL 6 Daylight 210.5 16 6500 DL 25
F8WDL 8 Daylight 306 16 6500 DL 25
F10WDL 10 Daylight 348 26 6500 DL 25
F13WDL 13 Daylight 515 16 6500 DL 25
F15WDL 15 Daylight 454 26 6500 DL 25
F 75/85W 75-85W Coolwhite 1800 38 4000K CW 25
Triphosphor   Fluorescent Tubes
F18WDL 18 Daylight 607 26 6500 DL 25
F30WDL 30 Daylight 912 26 6500 DL 25
F36WDL 36 Daylight 1217 26 6500 DL 25
F58WDL 58 Daylight 1518 26 6500 DL 25
Coloured Fluorescent tubes
FL20T8RED 18W G13 590 26 RED 25
FL20T8DR 18W G13 590 26 DEEP RED 25
FL20T8BRE 18W G13 590 26 BRIGHT RED 25
FL20T8B 18W G13 590 26 BLUE 25
FL20T8G 18W G13 590 26 GREEN 25
FL20T8Y 18W G13 590 26 YELLOW 25
FL20T8DY 18W G13 590 26 DEEP YELLOW 25
FL40T8RED 36W G13 1200 26 RED 25
FL40T8DR 36W G13 1200 26 DEEP RED 25
FL100T8BRE 36W G13 1200 26 BRIGHT RED 25
FL40T8B 36W G13 1200 26 BLUE 25
FL40T8G 36W G13 1200 26 GREEN 25
FL40T8Y 36W G13 1200 26 YELLOW 25
FL40T8DY 36W G13 1200 26 DEEP YELLOW 25

T5 SLIMLINE FITTINGS

CODE L x W x H DESCRIPTION LAMP
TIA 8W 369x21x45mm 8W T5 S/line diffused plug n play DAYLIGHT
TIA 14W 629x21x45mm 14W T5 S/line diffused plug n play DAYLIGHT
TIA 21W 929x21x45mm 21W T5 S/line diffused plug n play DAYLIGHT
TIA 28W 1229x21x45mm 28W T5 S/line diffused plug n play DAYLIGHT
TIA 35W 1529x21x45mm 35W T5 S/line diffused plug n play DAYLIGHT
Conn 25 250mm 250 mm connecting cable -
Conn 50 500mm 500 mm connecting cable -
Conn 100     1000mm 1000 mm connecting cable -

T8 BARE BATTENS COMPLETE WITH LAMP

CODE DESCRIPTION LAMP
BB118 1 X 18W BARE BATTEN COOL WHITE
BB130 1 X 30W BARE BATTEN COOL WHITE
BB136 1 X 36W BARE BATTEN COOL WHITE
BB158 1 X 58W BARE BATTEN COOL WHITE
BB230 2 X 30W BARE BATTEN COOL WHITE

OTHER FLUORESCENT FITTINGS (DIFFUSED / WIRE GUARD) AVAILABLE ON REQUEST

CIRCULAR FLOURESCENT TUBES

STOCK CODE Watt Colour Diameter (outer) Colour
FCL 22W D/L 22 DAYLIGHT 210 6500 DL
FCL 32W D/L 32 DAYLIGHT 300 6500 DL
FCL 40W D/L 40 DAYLIGHT 402 6500 DL
Please note : Other Colour whites available on request

STARTERS

STOCK CODE TYPE CARTON QTY
FSU 4-80 watt starter 250
FS2 2-22 watt starters 250
MSE11 electronic starter 4 – 80W 100
EFS628 pulsestarters series 4-125 watt single
EFS120 pulsestarters series 15-22 watt single
CODE Type Description Ctn Qty
17V 17V starter holders 100
19 19 starter holders to match No 43 T12 100
12 12 starter holders recessed 500

CAPACITORS

Prices include mounting: Self adhesive for sizes up to and including 12MFD
All other sizes supplied with clips or nuts
Other Capacitor sizes available upon request

STOCK CODE Capacitor mF Voltage V
3MFD 3 240
4MFD 4 240
6MFD 6 240
8MFD 8 240
10MFD 10 240
12MFD 12 240
16MFD 16 240
18MFD 18 240
20MFD 20 240
25MFD 25 240
30MFD 30 240
35MFD 35 240
40MFD 40 240
45MFD 45 240
50MFD 50 240
7.2MFD 7.2 440

Guide for power factor correction

Wattage W Lamp Length mm Current A Capacitor mF Current@0.9Pf A Normal DT
10 348 0.23 2.5 0.076 -
15 454 0.310 3.2 0.111 55
18/20 607 0.370 4.0 0.120 55
30 912 0.360 3.2 0.206 55
36/40 1217 0.415 4.0 0.199 55
58/65 1518 0.660 6.5 0.301 50
75 1781 0.670 7.9 0.540 55

BARE BATTENS

STUCCHI LAMP HOLDERS

CIRCULAR FLUORESCENT

179 179/FF

180/D-FF 184/D-FF
180/D-FR 184/D-FR

130/V 130/A

COMPACT FLUORESCENT

130/V 130/A

131/V 131/A

132/V 132/A

430/VI

411/V

412/V

422/A-d1-X
422/A-d2-X
422/A-d3-X

422/A-q3-4-X

422/VA-d1
422/VA-d2
422/VA-d3

422/VA-q1
422/VA-q2
422/VA-q3

422/VP-q3-4

423/V-d1
423/V-d2
423/V-d3

423/V-q1 423/V-q2
423/V-q3 423/V-q4
423/V-q5 423/V-q6
423/V-q7

441/AU

441/V

443/A

FLUORESCENT T5

190/V

260

261 261/R

263 263/T

268 268/N

268/F

282/FAU 282/MAU

283

285/FAU 285/MAU

289/F-21 289/F-25
289/F-30 289/F-36

FLUORESCENT T8

43 43/T

66/AU 67/AU

140 140/C

142

142/FAU 142/MAU

147/F 147/M

196/S 196/C
197/S 197/C

229/S 229/C
229/S-SN 229/C-SN

248/S 248/CA

249/TS 249/TC
249/TS-SN 249/TC-SN

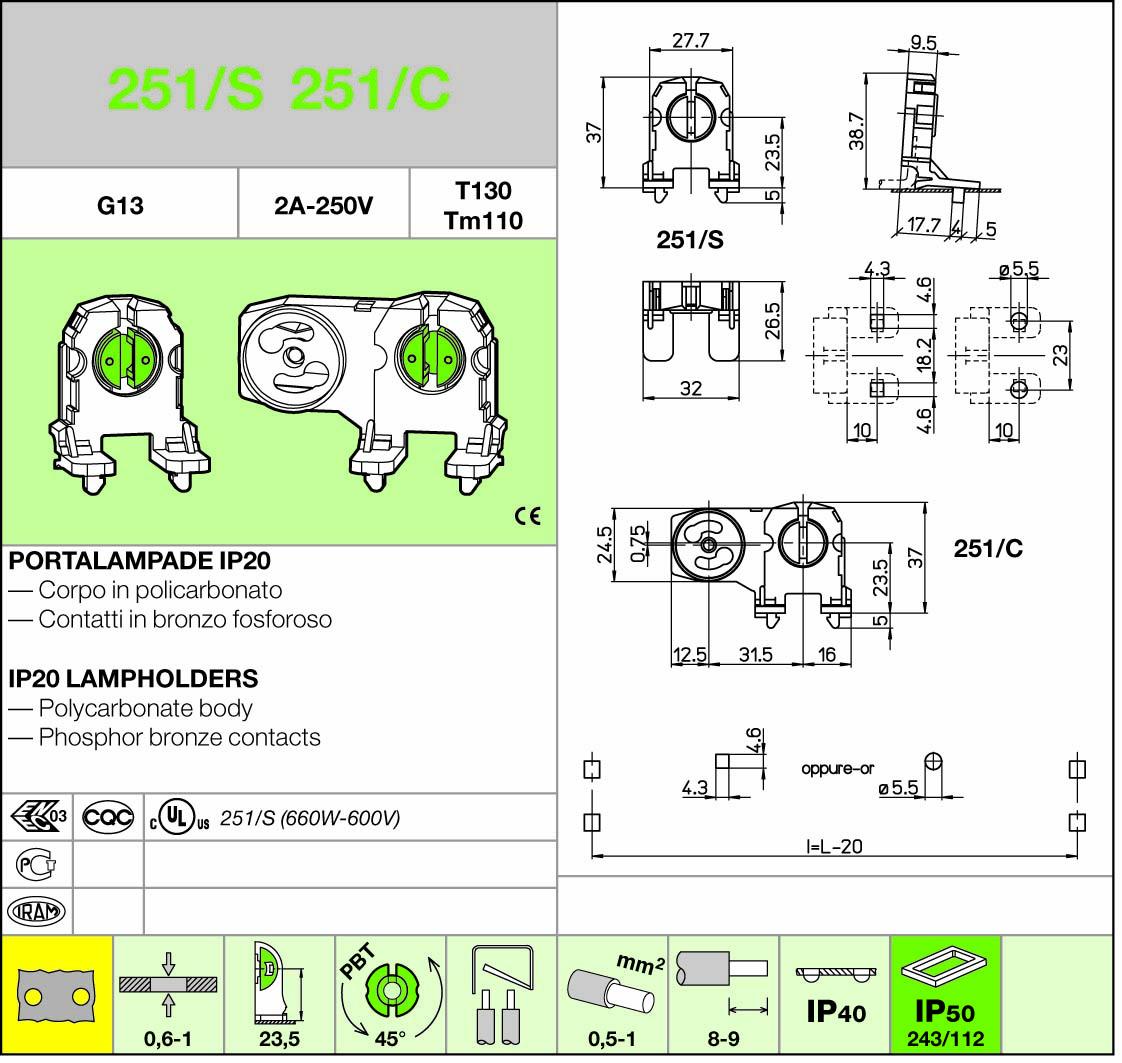

251/S 251/C

252/S 252-H/S
252/S-SN 252-H/S-SN

253/S 253/C

254/S 254/C
254/S-SN 254/C-SN

255/SA 255/CA

290/V-FR
290/V-FF

345/F 346/F

345/FAU 346/FAU
345/MAU 346/MAU

347/FAU 349/FAU
347/MAU 349/MAU

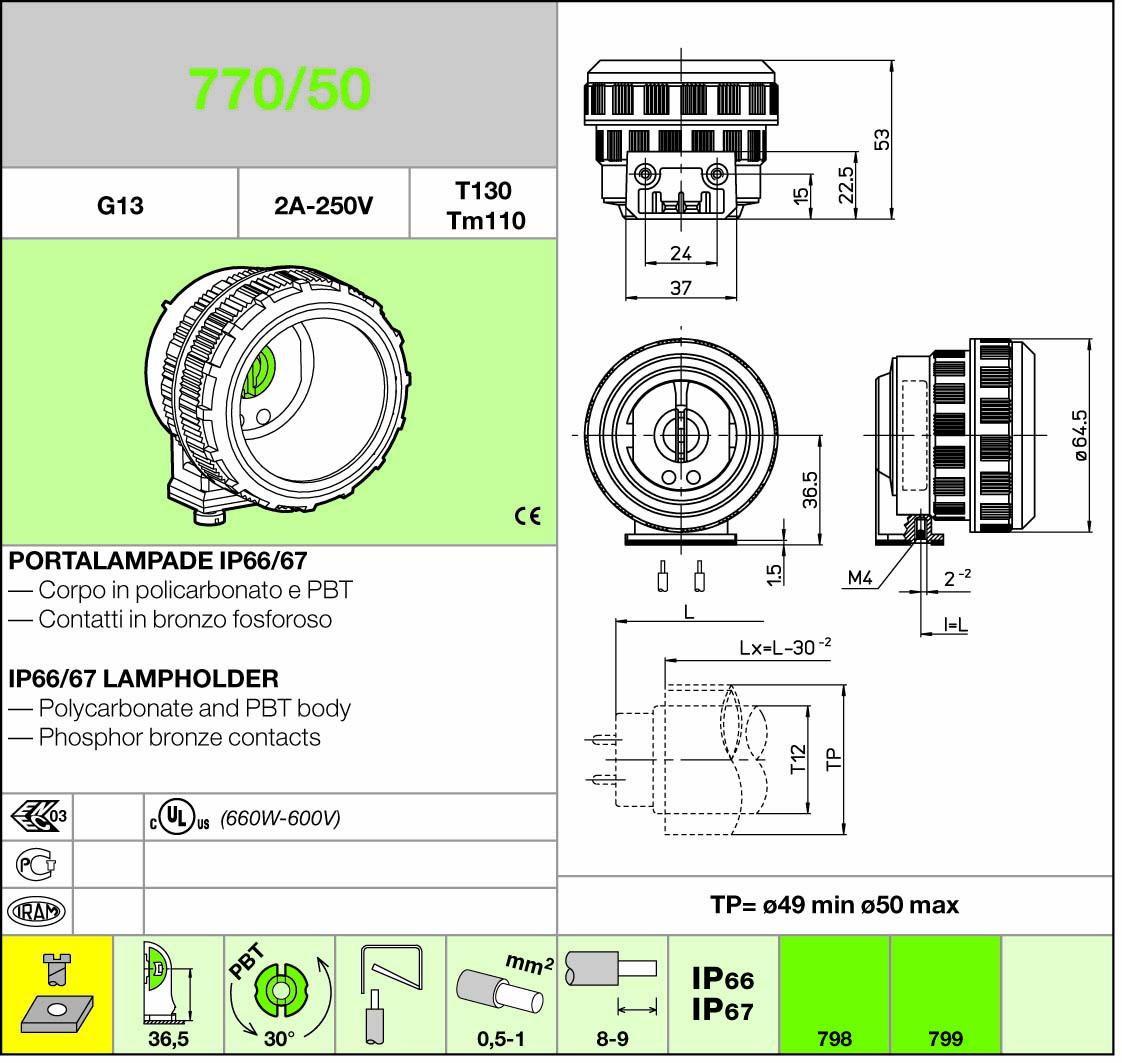

770/50

902/E
902/E-SN

1249/TS 1249/TC
1249/TS-SN 1249/TC-SN

HALOGEN LAMP HOLDERS

216
216/TF
216/TF-FEP

217-2
217-2/TF
217-2/TF-FEP

218/SA
218/SA-TF
218/SA-TF-FEP

220
220/TF
220/TF-FEP

223
223/TF
223/TF-FEP

224 224/X
224/TF 224/X-TF
224/TF-FEP 224/X-TF-FEP

224/GU5,3
224/GU5,3-TF
224/GU5,3-TF-FEP

226
226/TF 226/TF-FEP
226/DS 226/DT

V5028/N

V5124/SV
V5124/T
V5124/TP

METAL HALIDE

203-21/SC

203-21/SC-150

203-21/SG-70

203-21/SG-150

204
204/TF

208
208/TF

210
210/TF

211-21

305 305/S
305DS 305/S-DS
305DTT 305/S-DTT

315/F
315/MD

1226/X-SF

1306/SF-14 1306/SF-20

STARTER HOLDERS

16/A
16/AP

16/V
16/VP

17/V
17/VP

19

T5 & T8 FLUORESCENT CLIPS

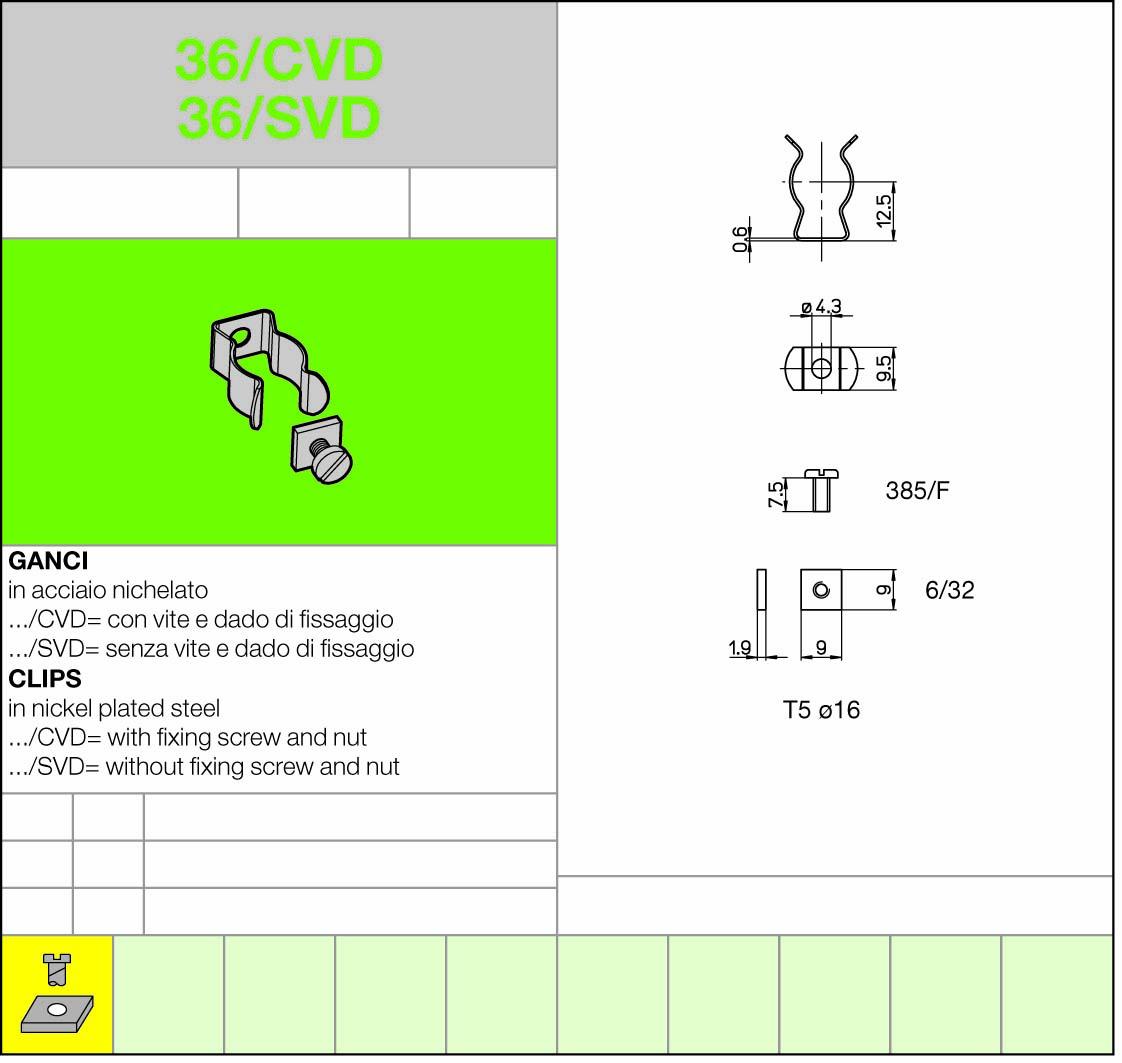

36/CVD
36/SVD

37/CVD 38/CVD
37/SVD 38/SVD

82/CVD 82/L-CVD
82/SVD 82/L-SVD

135/V

136/A

OTHER LAMP HOLDER AVAILABLE

TERMINAL BLOCKS, TOMBSTONES & LAMP HOLDERS

TERMINAL BLOCKS

CODE Type Description Ctn Qty Current
134/12 134/12 terminal strip 12 connector 8mm 100 20A
136/12 136/12 terminal strip 12 connector 10mm 100 30A
136/3/TSC 136/3/TSC terminal strip 3 connector with cover 100 30A
137/12 137/12 terminal strip 12 connector 11.5mm 100 40A
239/12 239/12 terminal strip 12 connector 13.5mm 10 55A
138/12 138/12 terminal strip 12 connector 14.5mm 10 75A
SLS10FFE SLS10FFE t/strip 3 connector –> push in wires 100 -
SLSCOVER SLSCOVER cover for SLS10FFE 100 -
C05 C05 terminal strip 10 connectors 2.5mm2 100 -
LAJB/V LAJB/V junction box screw fix with connector 100 -

TOMBSTONES & LAMP HOLDERS
Please note : Many more lamp holders available, please call for assistance

CODE Type Description Ctn Qty
140C 140C T8 push-on button & starter holder 100
142 142 T8 push-on 2-pin button 100
ST228S ST228S T8 TOMBSTONE LAMP HOLDER 100
43 43 T12 push-on 2-pin button 100
ST283 ST283 T5 Tombstone G5 twist end Lmp  Hldr 100
260 260 T5 Tombstone G5 push in Lmp Hldr 100
ST263 ST263 T5 G5 Push on end Lmp Hldr 100
184 184 circular lamp plug 4-pin 100
ST179 ST179 circular lamp plug & starter holder 100
KUFTB1/N KUFTB1/N fuse holder (A.N.E. terminal) 100
KU05A KU05A fuse cartridge for FTB1/N 5amp 100
439 439 3-pin plug male single
438 438 female 3-pin plug single
530LT 530LT batten holder BC single
5510 5510 self adhesive cable supports 100

BAKELITE

CODE Type Description Ctn Qty
413 - Fan Surface 3 Pin Socket 10
414 SPECIAL Fan Surface 3 Pin Socket DOUBLE 1
SINGLE SCREW - Single Screw connectors 100
ARCHSWTCH - Single Architrave Switch 20
WSW201 PDL - PDL lock on/off switch 20Amp IP56 6
WPSWTCH - IP56 Switch 95x95x60mm 20Amp 6
WPLOCOFFSW - IP56 Lock Off Switch 170x80x90mm 6
DBLE GPO - Double GPO POWERPOINT 10
JBSML - Small junction box 80 x 60 x 36mm 10
JBLGE - Large junction box 96 x 68 x 47mm 10
JB IP65 - Junction Box IP65 80mm  x 80mm whatever
MNTBLOCK - General Power Outlet Mount Block 10

JUNCTION BOXES

LAMP CLIPSVARIOUS CABLES

CODE Type Description Ctn Qty
Clip36 36 T5 Metal tube clip 16mm 200
Clip37 37 T8 Metal tube clip 26mm 200
Clip38 38 T12 Metal tube clip 38mm 200
Clip82 82 Circular 1/2 Metal clip for circular tube 500

2 & 3 PIN PUGS

CODE Type Description Max Amps Metres
3PP1.7M 1.7 Metre 3Pin Plug & Flex –   Grey 7.5 amps EA
3PP2M 2 Metre 3Pin Plug & Flex  Grey / Black / Cream 7.5 amps EA
3PP3M 3 Metre 3Pin Plug & Flex – Black 7.5 amps EA
2PP2MWH-SW 2 Metre 2Pin Plug with inline switch White 7.5 amps EA

CONDUIT

CODE DESCRIPTION Size Quantity
CONDUIT16 - AUST MADE Flexible Conduit 16mm 16mm 50MT
CONDUIT20 Flexible Conduit 20mm 50MT
180/16 Half saddle 16mm Conduit Metal Saddle EA
180/20 Half saddle 20mm EA
SGLAND16 Gland for flexibile conduit 16mm EA
SGLAND20 Gland for flexibile conduit 20mm EA
ELBOWGLAND ELBOWGLAND Angle 16mm Conduit Glands EA

LUGS & LINKS, BOTH INSULATED & NON INSULATED

CODE DESCRIPTION Quantity
INS TAPE B Insulation Tape 19mm x 20M Black EA
INS TAPE BL Insulation Tape 19mm x 20M Blue EA
INS TAPE GN/Y Insulation Tape 19mm x 20M Grn/Ylw EA
INS TAPE RD Insulation Tape 19mm x 20M Red EA
INS TAPE WH Insulation Tape 19mm x 20M White EA
DUCT TAPE  BLACK Sealing Tape 48mmx30 MT BLACK EA
DUCT TAPE GREY SEALING TAPE 48MMX30M GREY EA
Type Cable Stud Qty
Insulated Lugs
RT 1.25-5 0.5-1.5 5mm 100
RT 1.25-6 1.5-1.5 6mm 100
RT 2-5 1.5-2.5 5mm 100
RT 2-6 1.5-2.5 6mm 100
RT 5.5-5 2.5-6.0 5mm 100
RT 5.5-6 2.5-6.0 6mm 100
Bullet Connectors
BT1.25MI 0.5-1.5 Male 100
BT1.25FI 0.5-1.5 Female 100
Uninsulated Lugs
RT 1.25-5 0.5-1.5 5mm 100
RT 1.25-6 1.5-1.5 6mm 100
RT 2-5 1.5-2.5 5mm 100
RT 2-6 1.5-2.5 6mm 100
RT 5.5-5 2.5-6.0 5mm 100
RT 5.5-6 2.5-6.0 6mm 100
Grommets
RG Rubber - 100
GN16 GN16 – IP68 Nylon gland - EA
Star Lugs
RS – 5 - 5mm 100
RS – 6 - 6mm 100

CABLE TIES

Please note : Cable prices are subject to change without notice

CODE Description Max Amps Metres
SILN Silicon H.T. natural cable 8mm - 100
SILB Silicon H.T. black cable 8mm - 100
1/1.13 1mm V90HT wire in 5 different colours 16 500
1/1.13 100M 1mm V90HT wire in 5 different colours 16 100
1MMTE 1mm SQ. twin & earth 16 100
1.5MMTE 1.5mm SQ twin & earth 19 100
2.5MMTE 2.5mm SQ. twin & earth 28 100
4MMT&E 4mm twin & earth 7/0.85 36 100
7/.67E 2.5mm Earth Wire 20 100
7/.85E 4mm earth Grey, Black, White 28 100
3CF7.5A 3 Core Flex Grey, Black, White 7.5 100
AFC22603 2 Core Fig 8 4mm2 - 100
LED0.5F8 - 115V DC Figure 8 LED 14/.20 white/blk chser - 100
Code Description DIMENSIONS Qty
CT1000 NATURAL 102mm x 2.5mm 1000
CT150NAT NATURAL 150mm x 3.2mm 100
CT150NBLK BLACK 150mm x 3.2mm 100
CT2000 NATURAL 200mm x 3.6mm 1000
CT200NAT NATURAL 200mm x 4.8mm 100
CT200BLK BLACK 200mm x 4.8mm 100
CT300NAT NATURAL 300mm x 4.8mm 100
CT300BLK BLACK 300mm x 4.8mm 100
CT370NAT NATURAL 370mm x 4.8mm 100
CT370BLK BLACK 370mm x 4.8mm 100
CTM Self adhesive mount base 100
PCN6 Clamp 6mm 100
OTHER CABLE TIE SIZES & COLOURS AVAILABLE ON REQUEST

Interested in our

products and services?

AUS LED & Neon Wholesalers Pty ltd

Factory 27, 35-37 Jesica Rd 35-37 Jesica Rd

Campbellfield, VIC 3061

AUSTRALIA

(03) 9034 6104
